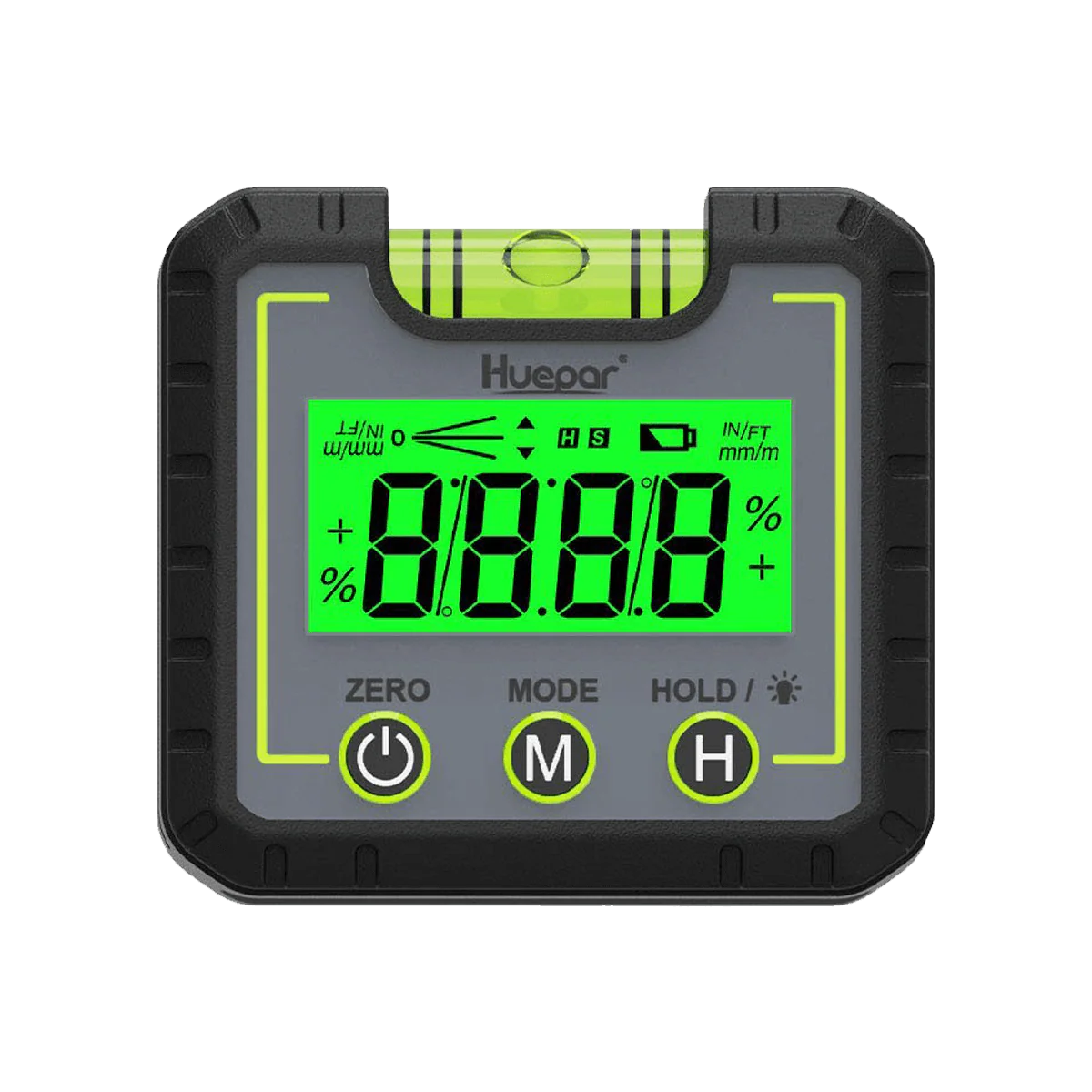

Huepar AG01 – Digital Level Angle Gauge Inclinometer

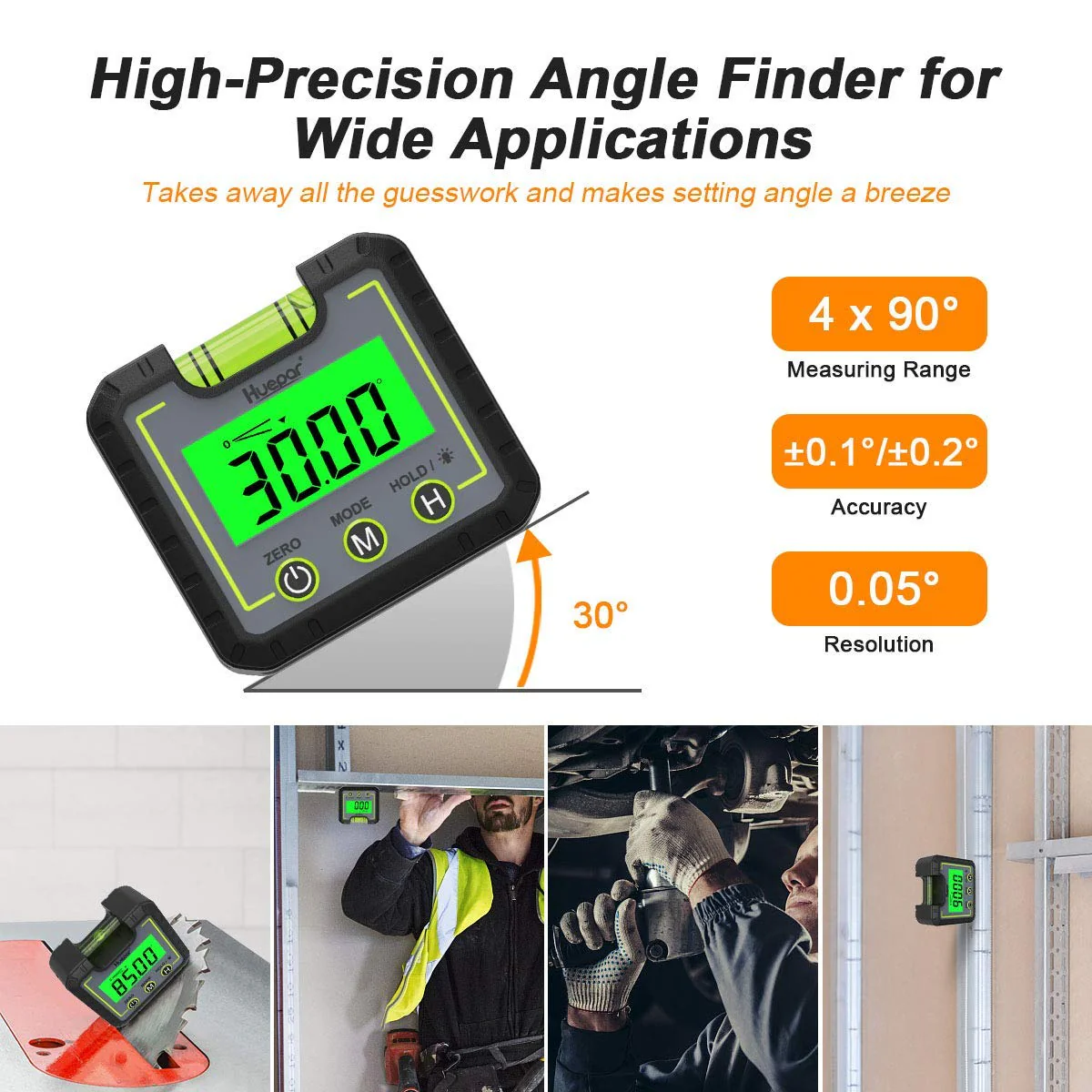

HIGH ACCURACY & FOUR UNITS:

0.1°at 0° ~90° , ±0.2° at other angles with the resolution 0.05°. It features a wide measuring range of 4 × 90° (0–360°). There are four selections of measuring units, degree(°)，percentage(%), mm/m, in/ft, which can meet various working demands. This digital angle inclinometer provides convenience in woodworking, construction, machinery, telecommunications, automobile etc.

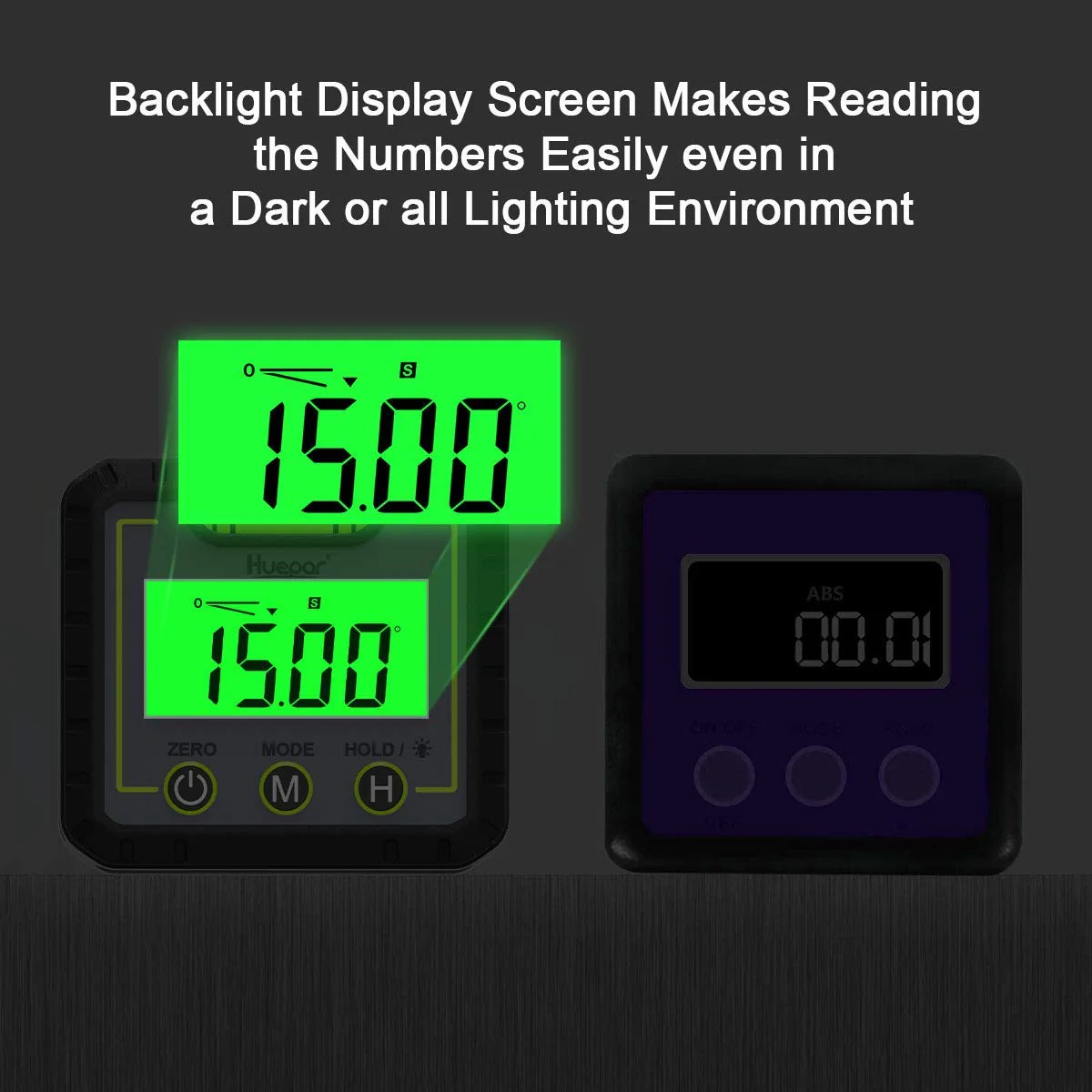

BACKLIGHT LCD DISPLAY & EASY-TO-READ:

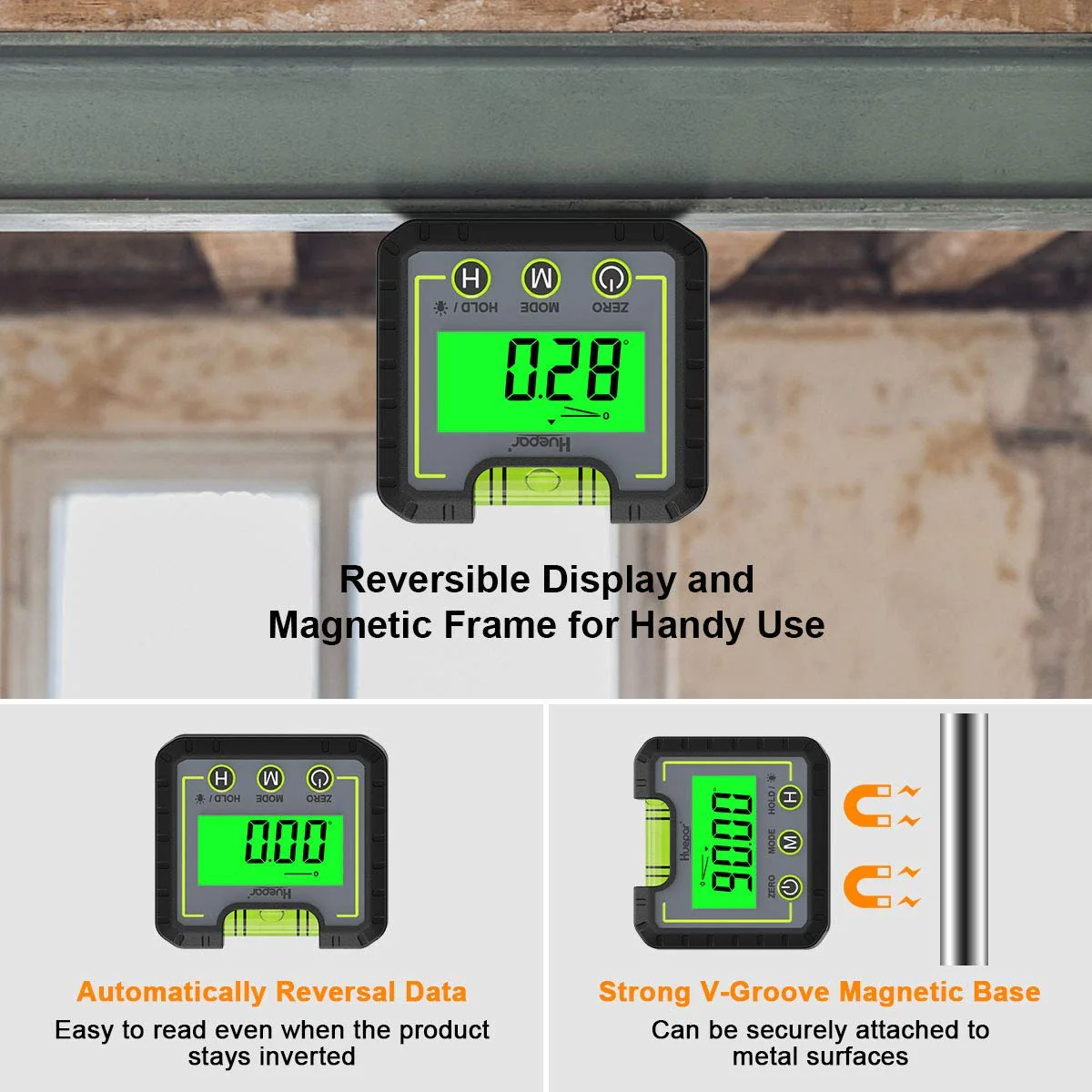

The Digital Angle Gauge has a large LCD display with backlight, which provides accurate, quick and clear measurements. Users can easily read the measurements even in dark environment. The backlight switches on and off freely, and the display automatically inverts when the tool is upside down. In addition, this digital level tool will automatically turn off after 5 minutes of no operation to save battery.

MAGNETIC V-GROOVE BASE & EASY MARKING:

With its powerful magnetic V-groove base at the bottom, this digital bevel gauge can easily and firmly attach to miter saw, band saw, table saw blades, metal poles and even round pipes. Furthermore, you can use it on fences, tables, and other metal surfaces. As a result of its strong magnet, the tool stays securely in place during measurement. Additionally, the groove lines on both sides provide added convenience for marking.

HOLD & ZERO FUNCTION:

The current measurement value can be held on the display by short pressing the HOLD switch. The zero function enables users to set relative zero angle at any reference surface. The built-in level bubble vial on the top enables leveling work without a battery.

PORTABLE & PACKAGE CONTENTS:

Its compact size lets the angle gauge fit into tight spots and deliver precise measurements. The handy design and portable pouch make this sturdy precision tool easy to take anywhere. Users can install the battery easily with the included screwdriver. The package contents include 2 x AAA batteries, a screwdriver, a portable pouch with belt loop, user manual.

Huepar AG01 Angle Gauge is compact and highly convenient for precise angle measurements including measuring absolute and relative angles. This bevel gauge is great for calculating in Helicopter/ Bevel Angle of Miter Saw/ Automobile Test and Repair.

Specifications:

• Measuring range: 4 x 90° (0 ~ 360°)
• Measurement Units: degree(°)，percentage(%), mm/m, in/f
• Display: Advanced LCD Display with Backlight
• Resolution: 0.05°
• Accuracy: ±0.1°at 0° ~90° , ±0.2° at other angles
• Working Temperature: 0°C to 40°C
• Power Method: 2 x AAA batteries (included)

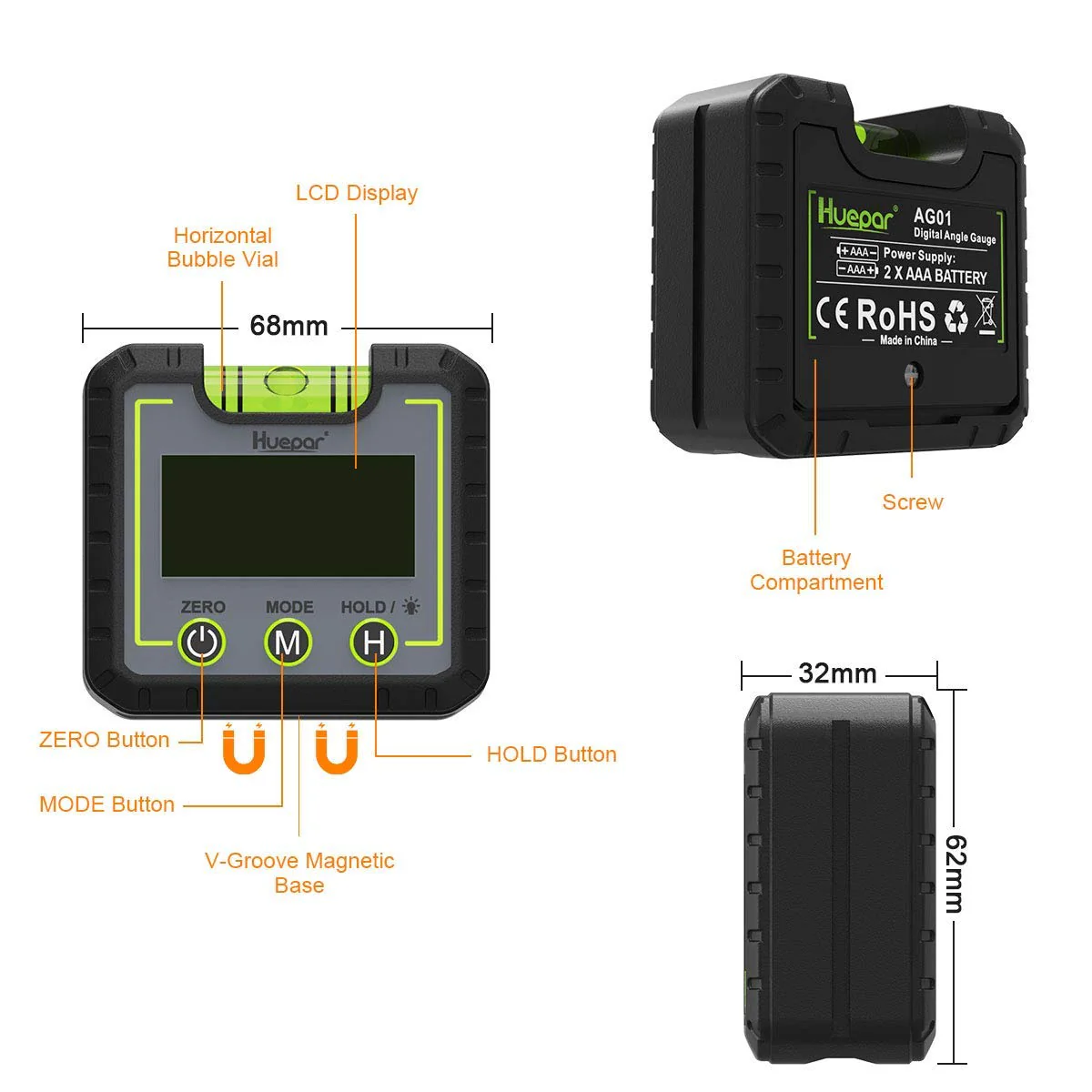

• Dimension: approx. 68 x 62 x 32mm (L x W x H)
• Weight: approx. 100g

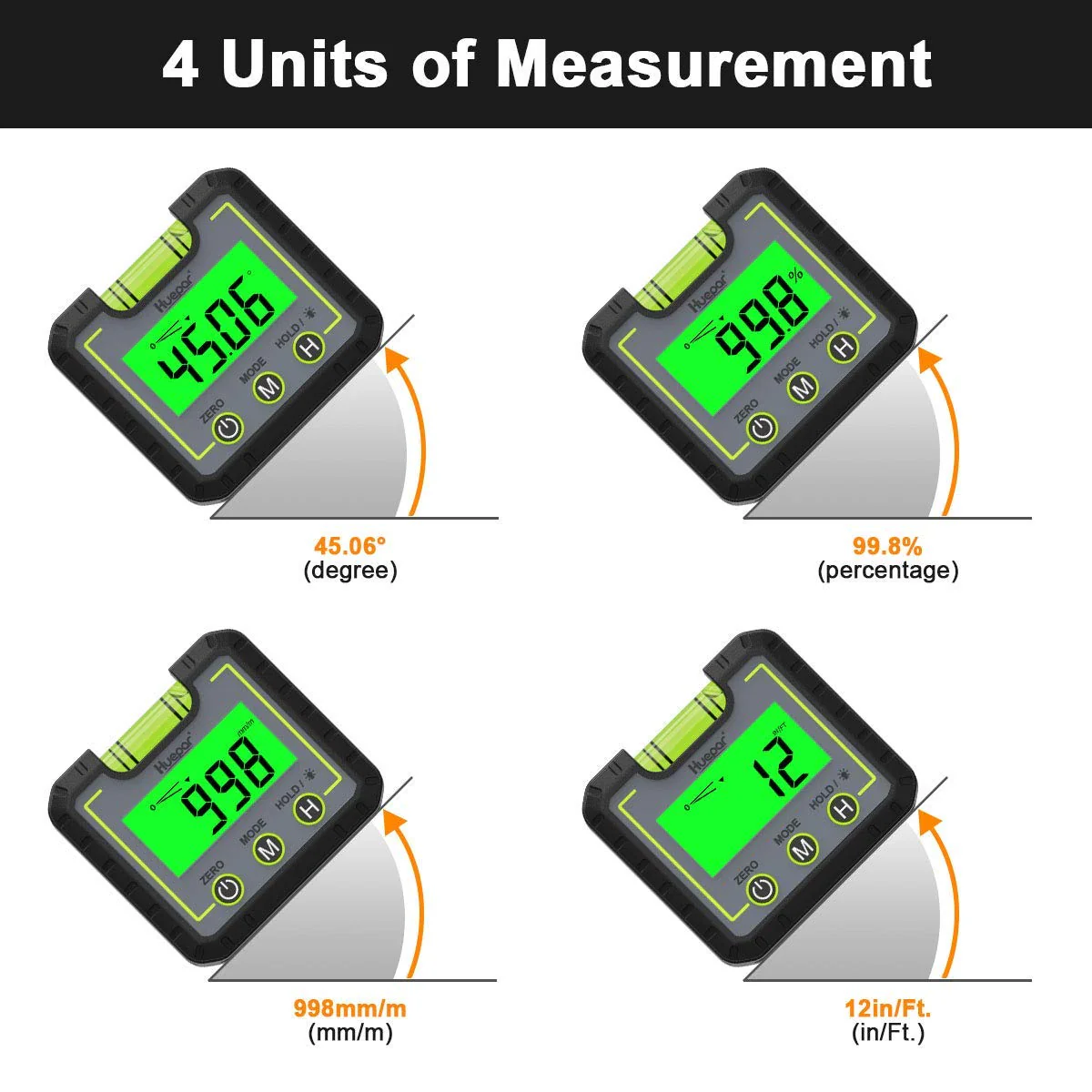

Four Units & Hold Function

• Huepar AG01 angle gauge offers four precise display units in degree(°)，percentage(%), mm/m, in/ft improve the measuring accuracy.
• The current measurement value can be held on the display by short pressing the HOLD switch.
• This digital angle inclinometer provides convenience in woodworking, construction, machinery, telecommunications, automobile etc.

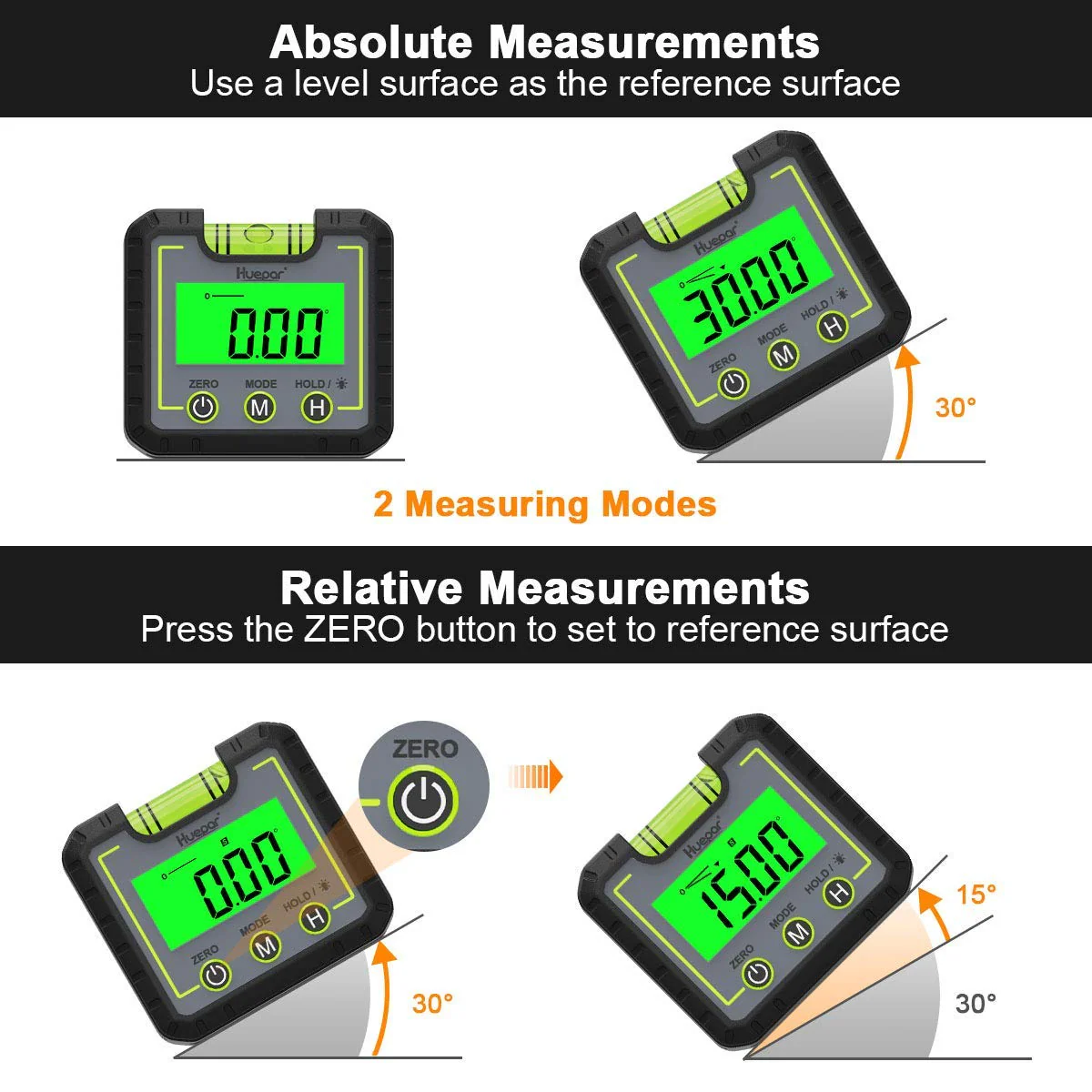

Absolute & Relative Measurements

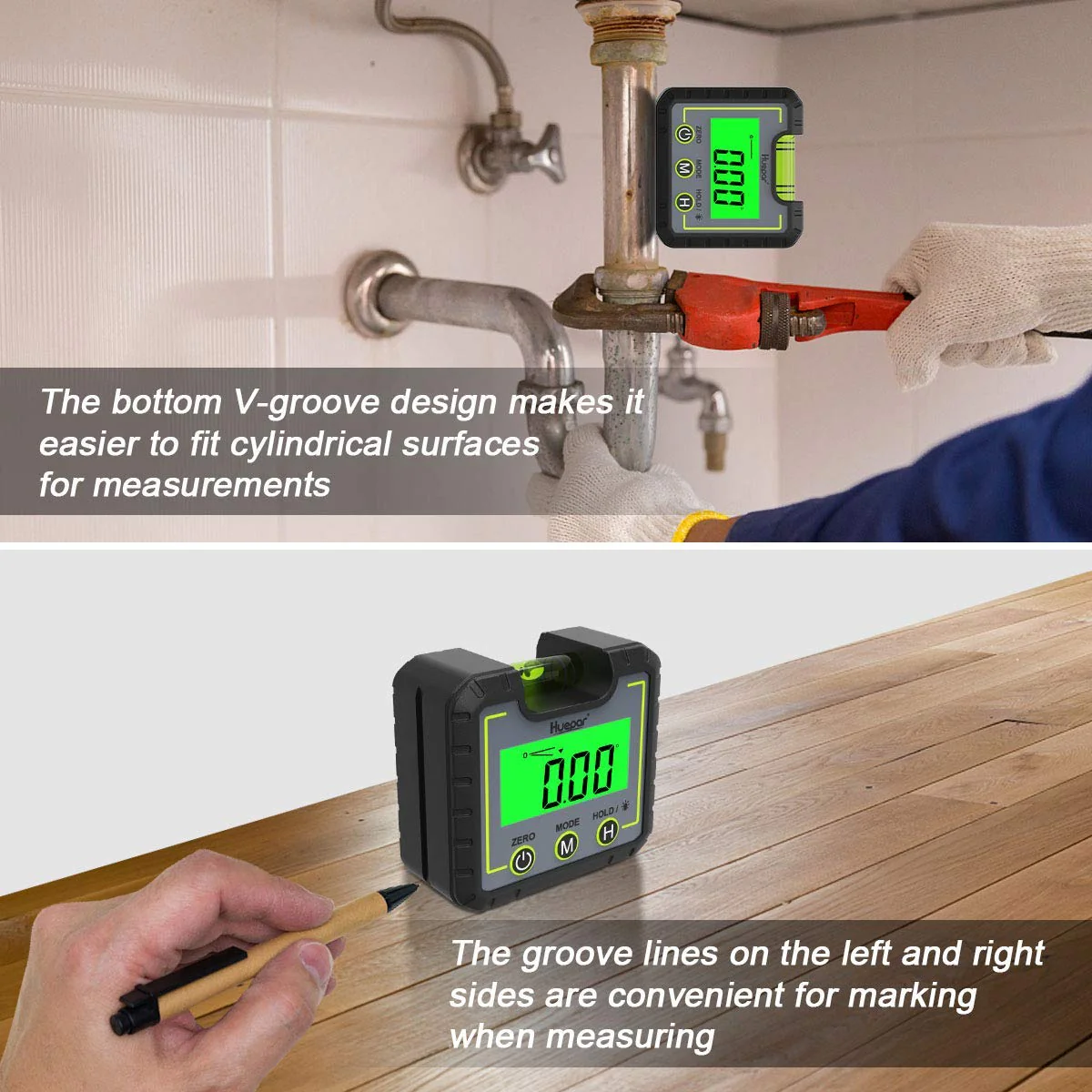

• With its powerful magnetic V-groove base at the bottom, this digital protractor can easily and firmly attach to miter saw, band saw, table saw blades, metal poles and even round pipes.
• This bevel gauge can be used on fences, tables, and any other metal surfaces.
• At the same time, the groove lines on the left and right sides provide added convenience for marking while measuring.

Battery Installation

• The angle gauge kit comes with a screwdriver.
• Users can install the battery easily with the included screwdriver.
• This digital level tool will automatically turn off after 5 minutes of no operation to save battery.

Bubble Level Vial

• The built-in level bubble vial on the top is provided for leveling work without the need for a battery.
• The bubble vial is located in the middle to indicate horizontal conditions..
• It is designed with a wide measuring range of 4*90° (0~360° for various applications to measure and set angles).

Portable

• In compact size, this angle gauge can fit into tight spots to get perfect measurements needed.
• With handy design and a portable pouch, this sturdy precision tool can be taken to anywhere.

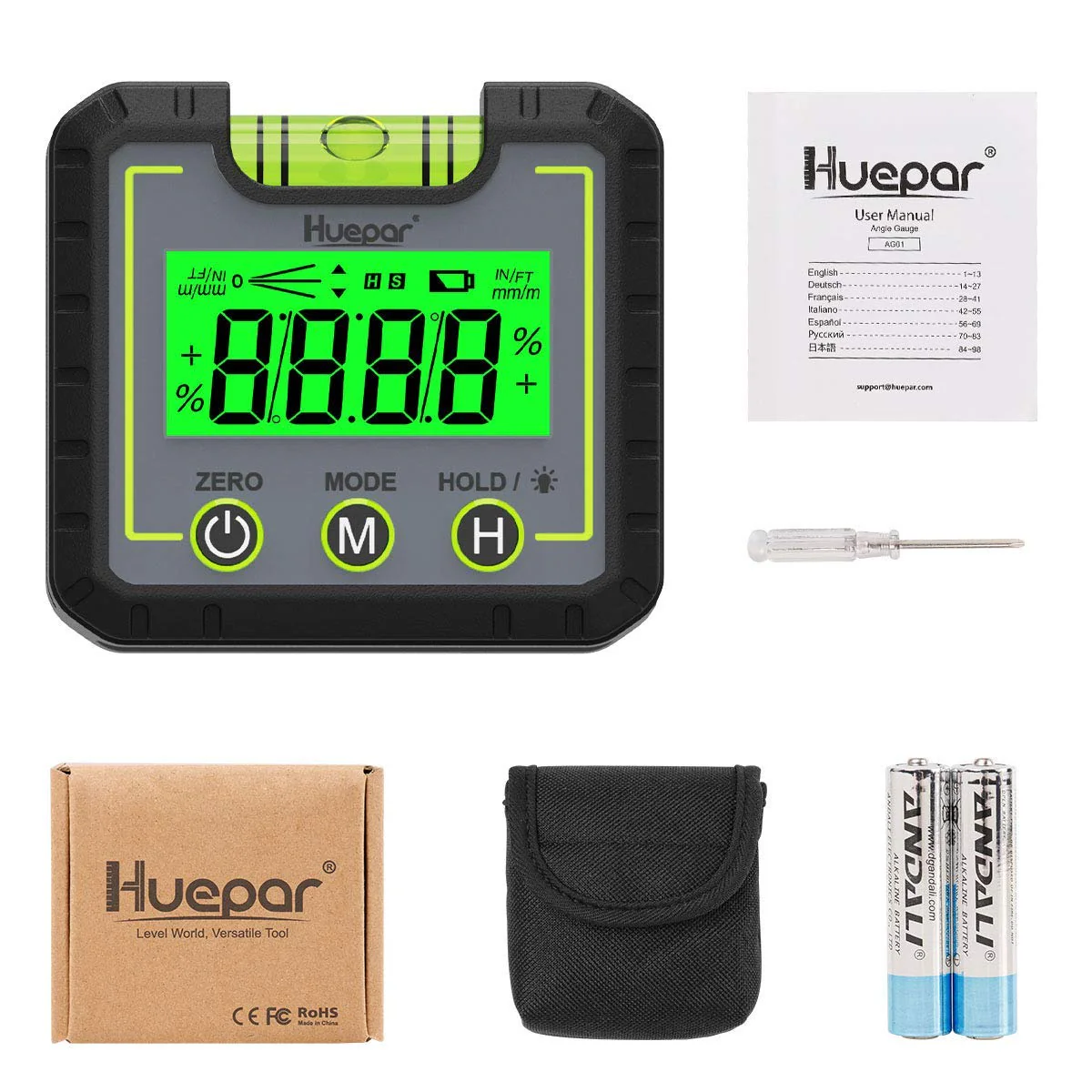

Package Contents

• 1 x Huepar AG01 Digital Angle Gauge
• 2 x AAA Batteries
• 1 x Screwdriver
• 1 x Portable Pouch with a Belt Loop
• 1 x user manual
